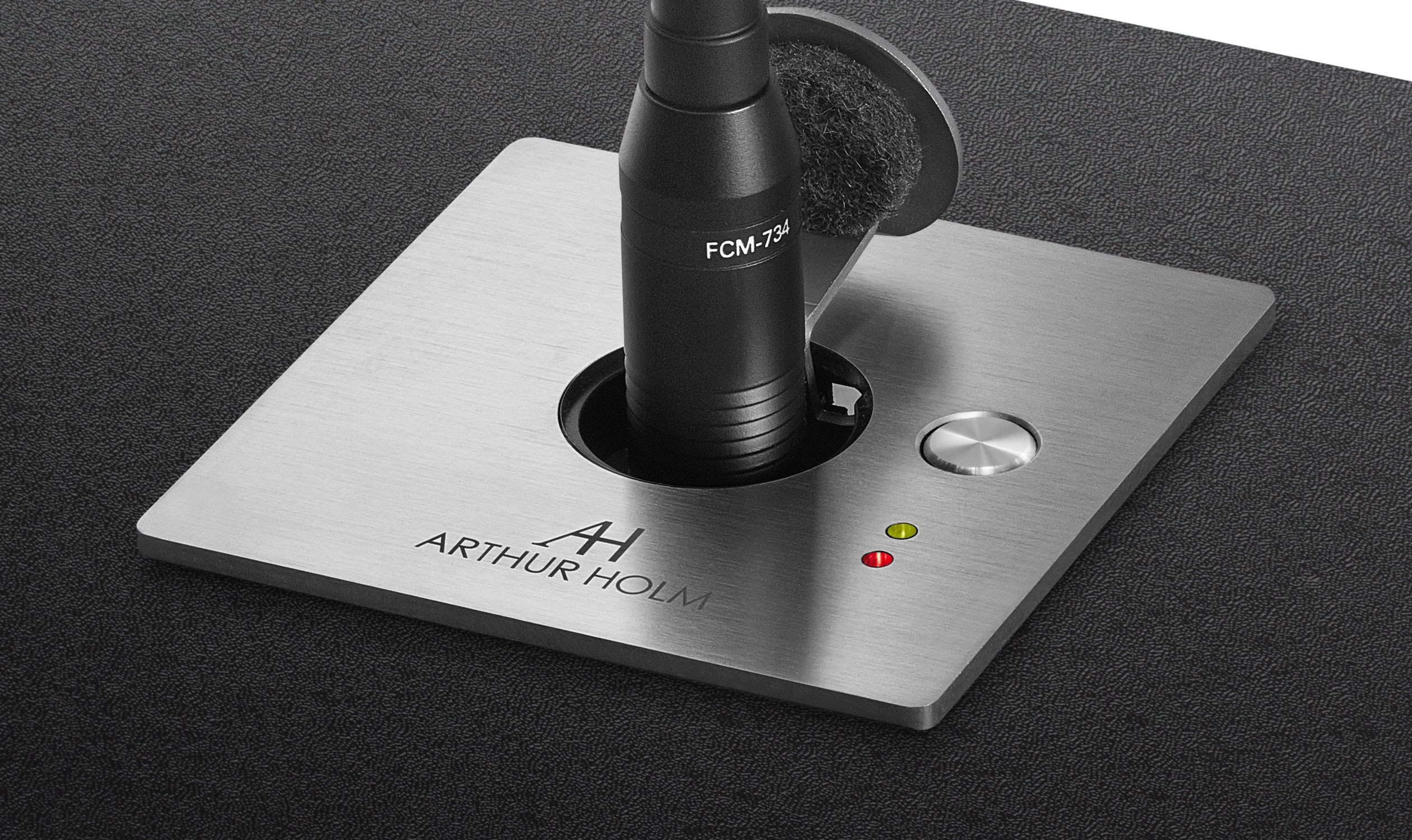

MicConnect d’Arthur Holm est une surface statique de micro conçue pour les micros XLR et dotée d’un support antivibratoire, d’un bouton « press to talk » et de LEDs indiquant l’état du micro pouvant être rapidement et facilement installée et retirée. Le démontage se fait à l’aide d’un outil spécial (fourni), et en l’absence de micro, un cache intégré recouvre le connecteur XLR. MicConnect est en acier inoxydable et disponible dans des finitions standards ou personnalisées.
![support statique pour micro XLR](https://www.arthurholm.com/wp-content/uploads/2016/06/MicConnect-detalle-producto3.jpg)
![support pour microphone à installer dans salles de réunion](https://www.arthurholm.com/wp-content/uploads/2016/06/MicConnect-detalle-producto2.jpg)
![support micro XLR MicConnect](https://www.arthurholm.com/wp-content/uploads/2016/06/MicConnect-detalle-producto4.jpg)
![support micro avec bouton pour parler et lumières LED](https://www.arthurholm.com/wp-content/uploads/2016/06/MicConnect-detalle-producto1.jpg)
Positions
- Connecteur XLR
- Support vibratoire intégré
- Bouton « push-to-talk »
- Anneau LED indicateur d’état
- Cover plate
Stainless steel, matte or prepared for underneath installation (to be veneered or for table hedge)
- Buttons
Push to talk button, push the button to lift the lid
- Activation
Microphone installed, push the button to activate/deactivate the system
- Main control
Main control depends on the audio unit
- LED’s
Green and red LED is activated from the main audio unit.
(5Vdc Voltage)
- Microphone Input
XLR3 pin standard microphone connector below the lid with integrated shock mount.
- Microphone Output
3 pin terminal block, located on the lower part of the MicConnect
- Controls
6 pin terminal block, located on the lower part of the MicConnect
Contact close push button
5Vdc Led power indicators
