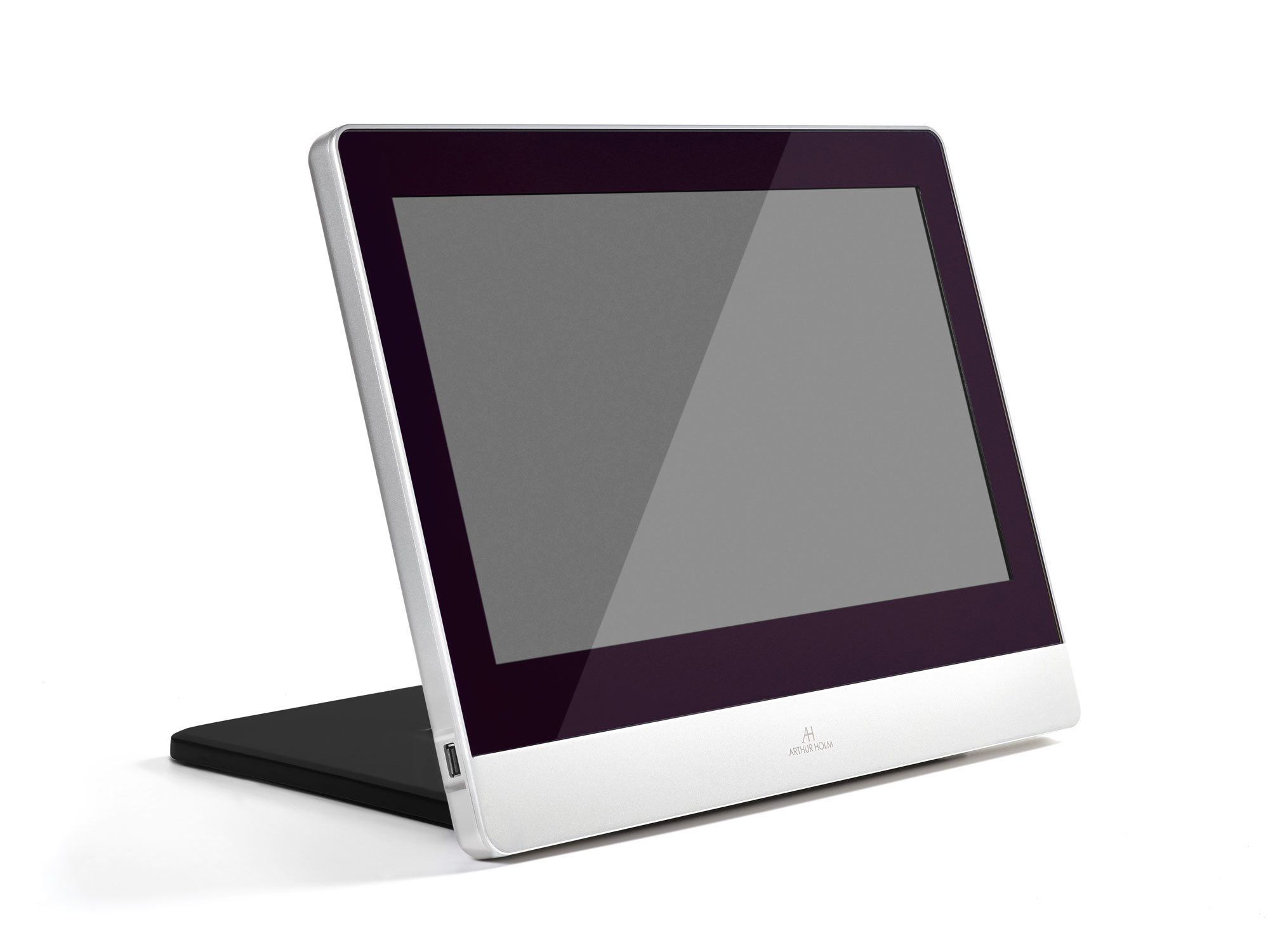

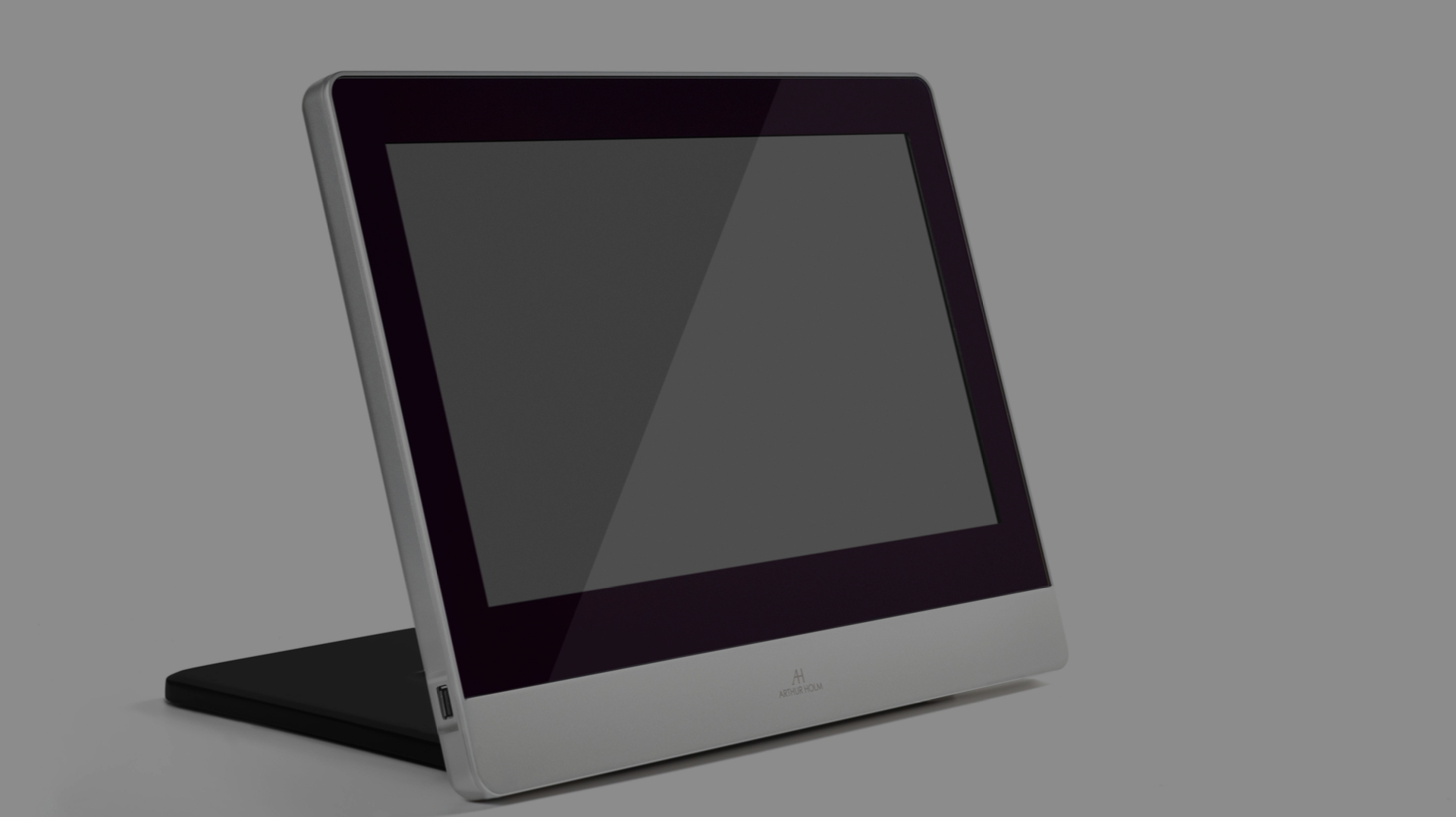

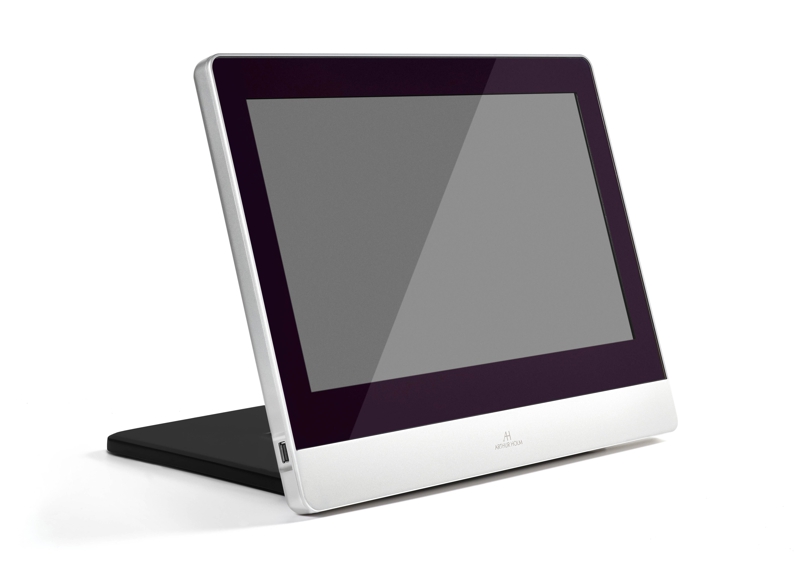

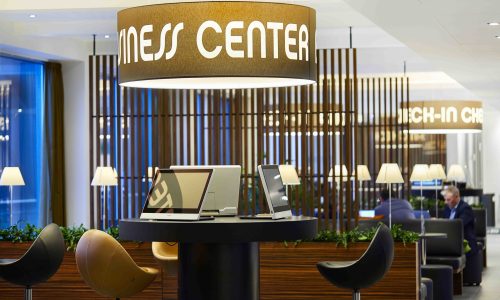

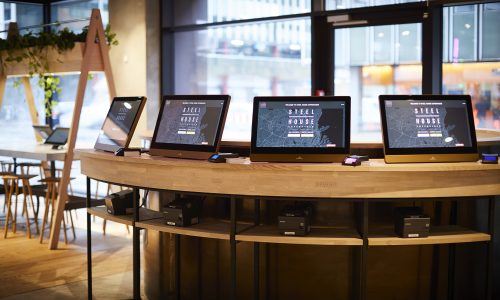

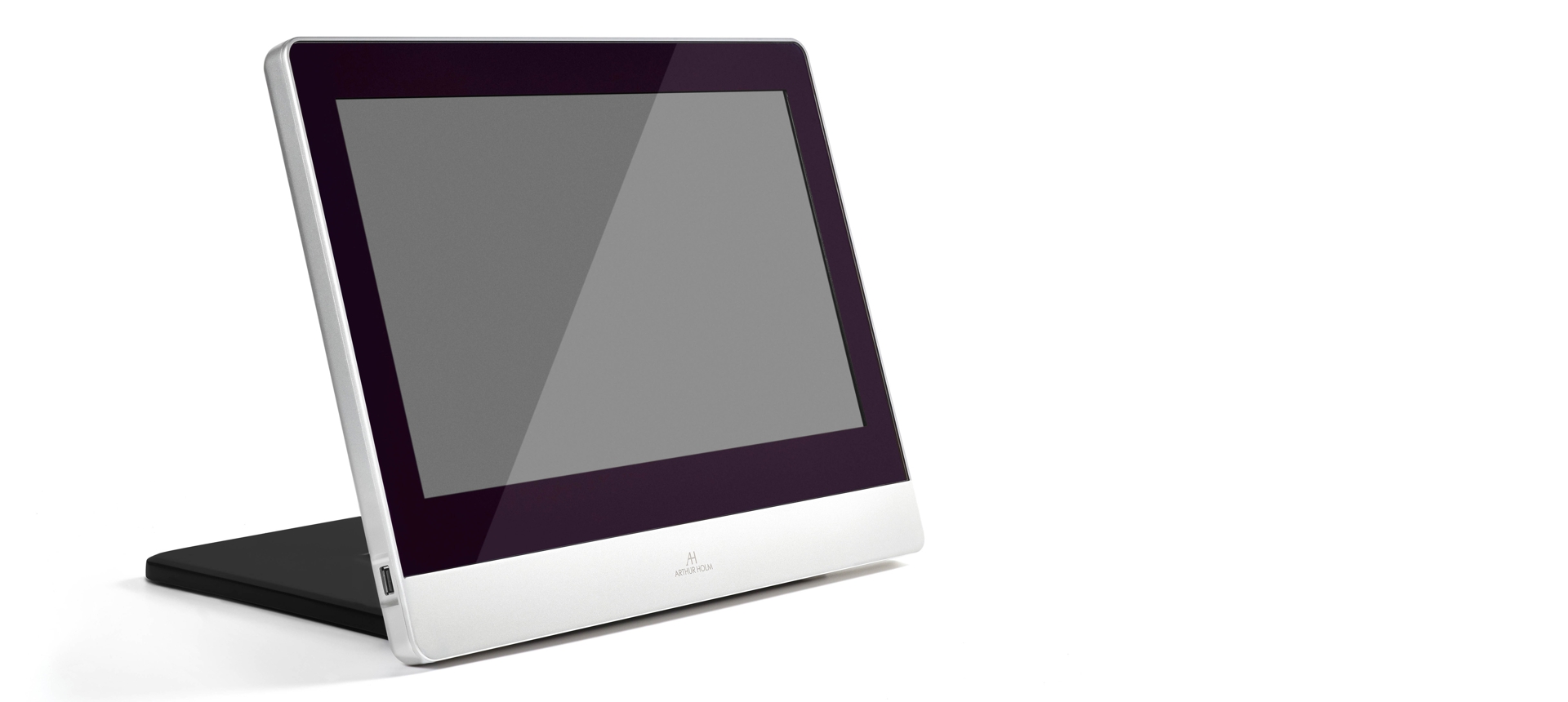

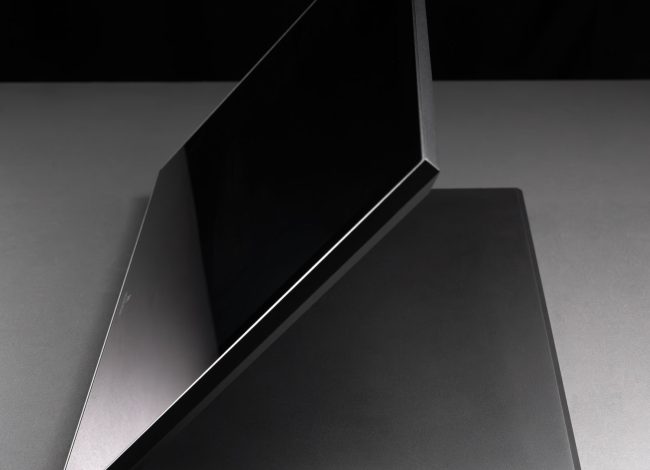

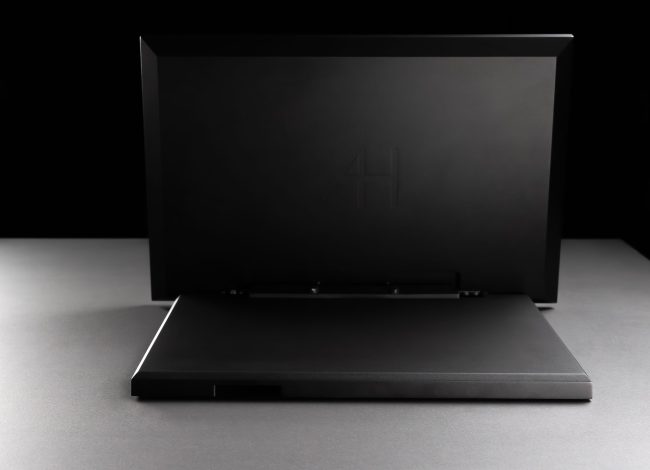

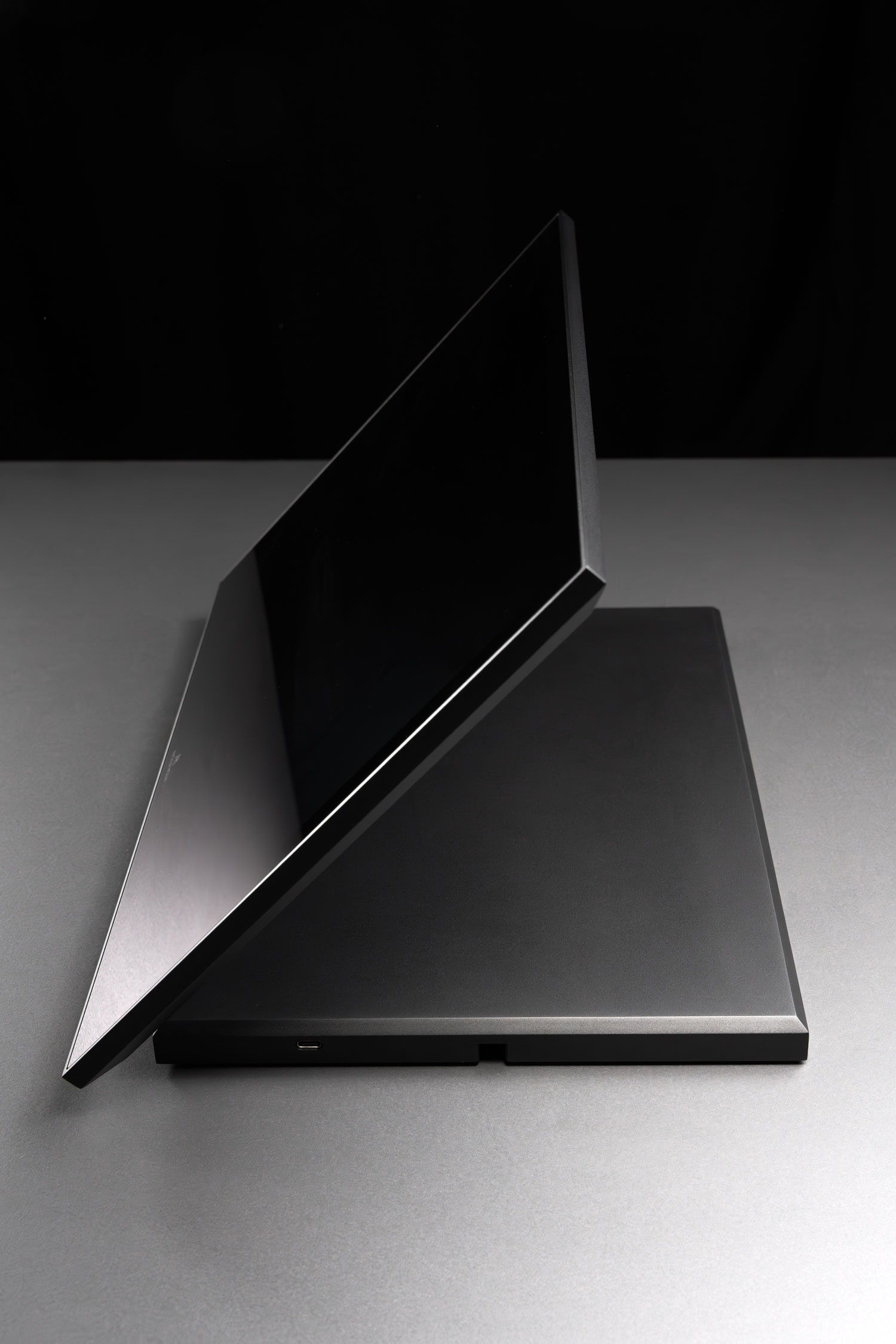

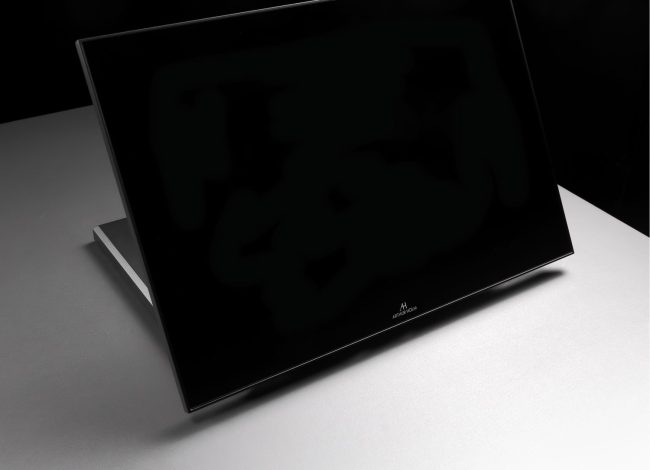

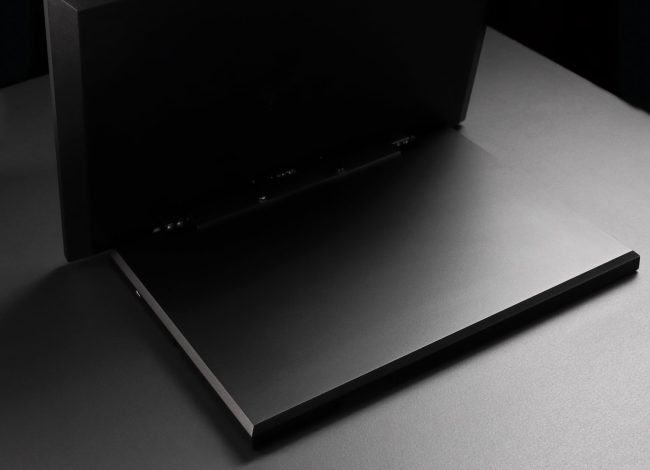

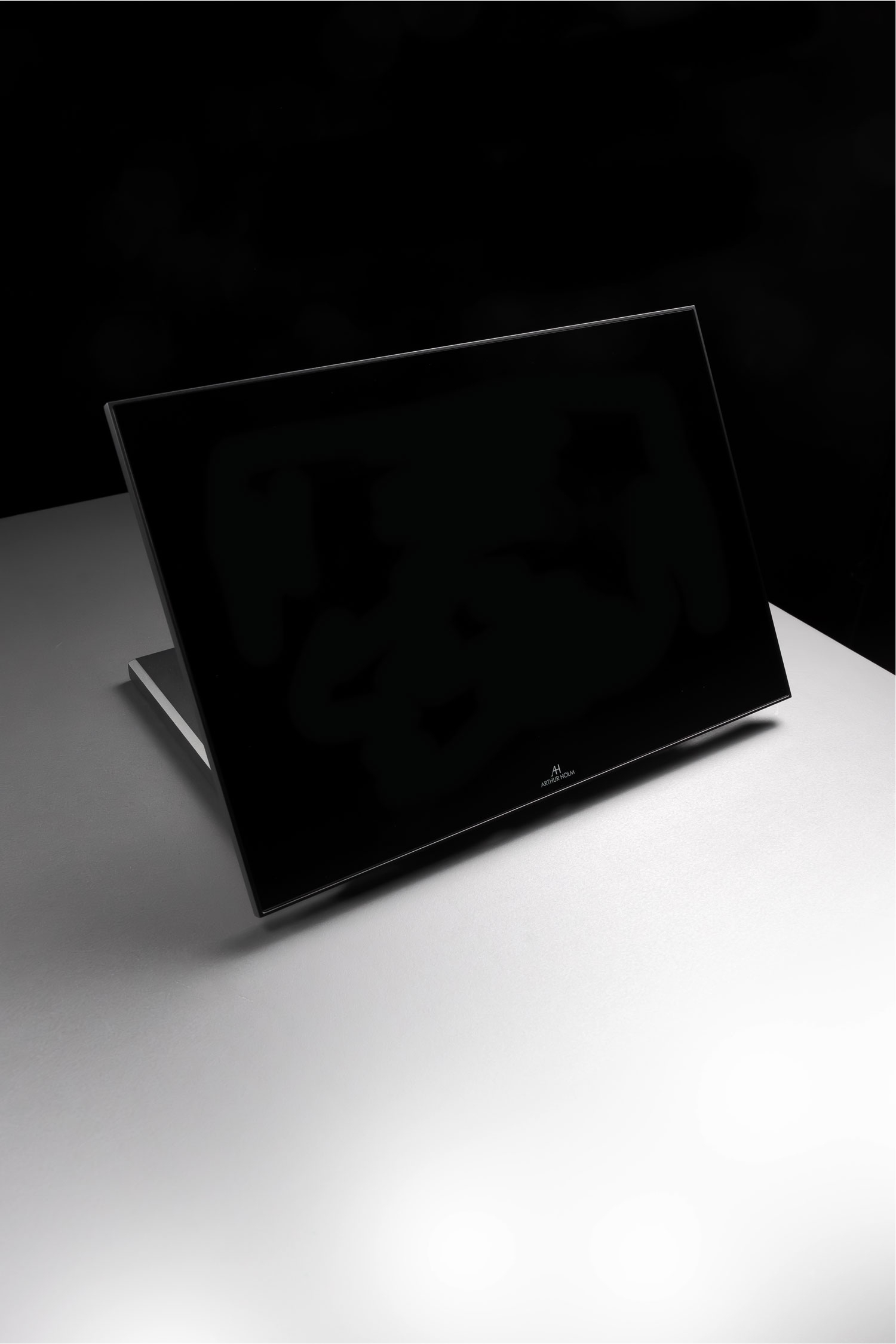

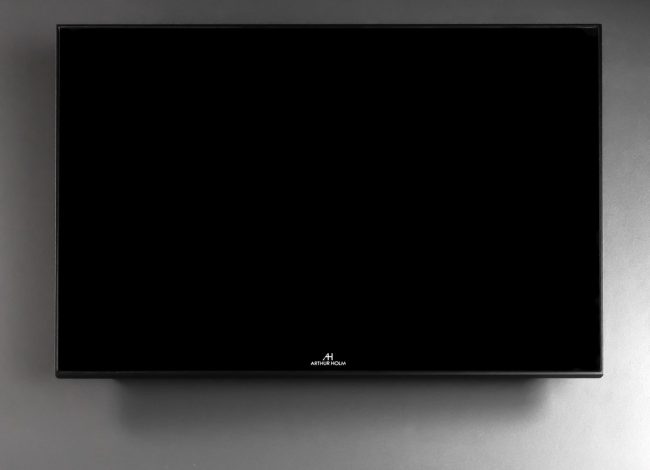

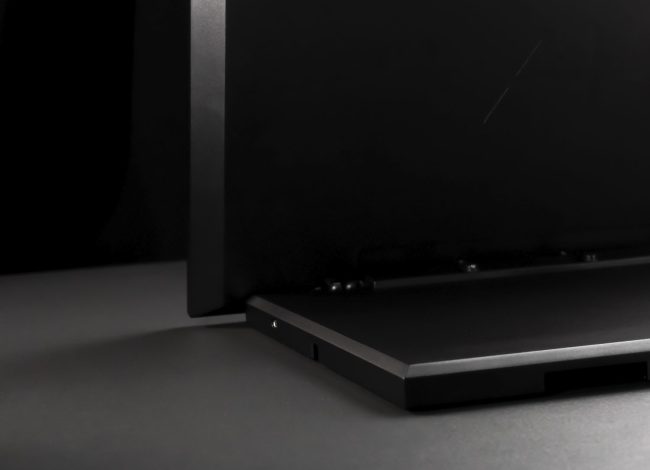

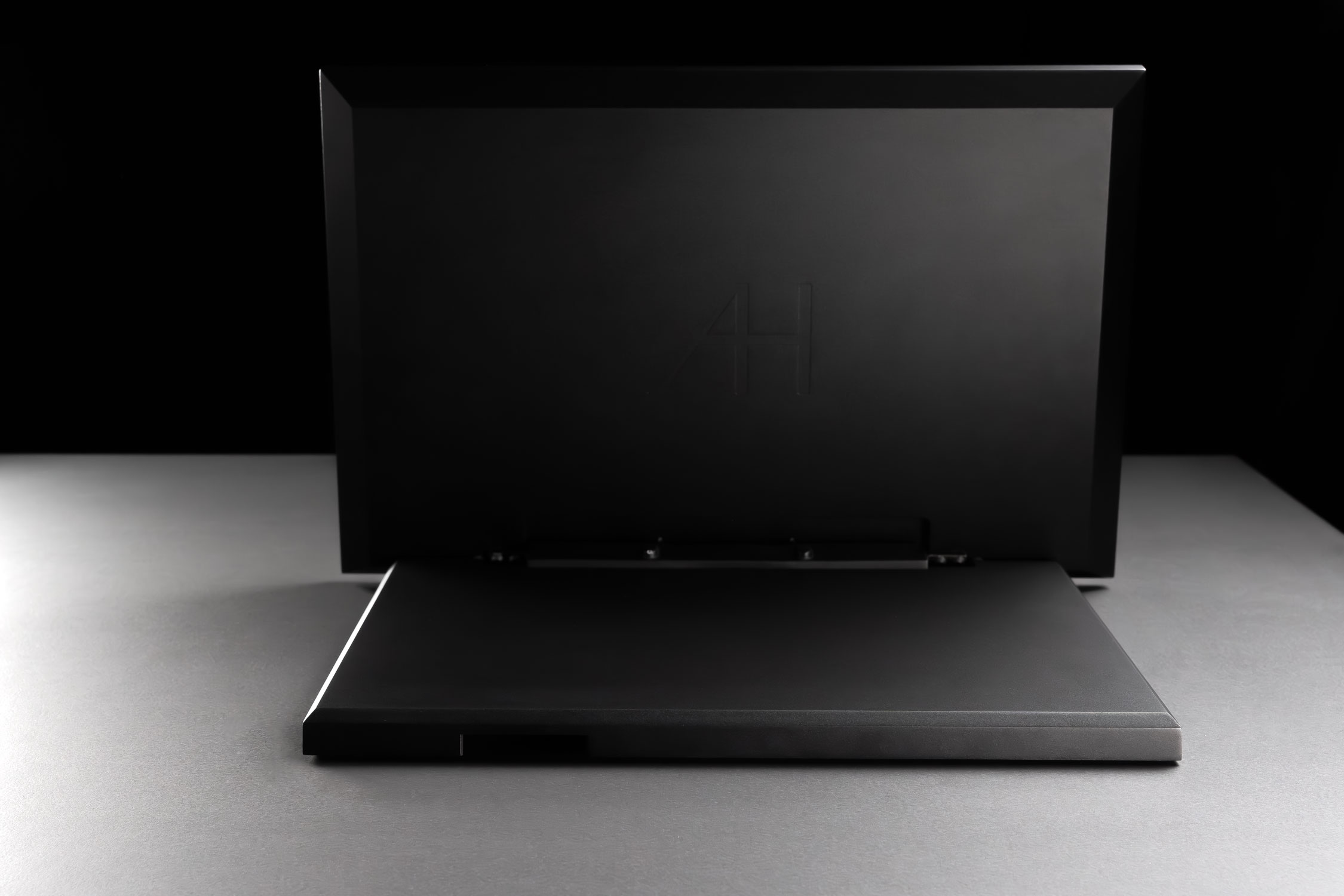

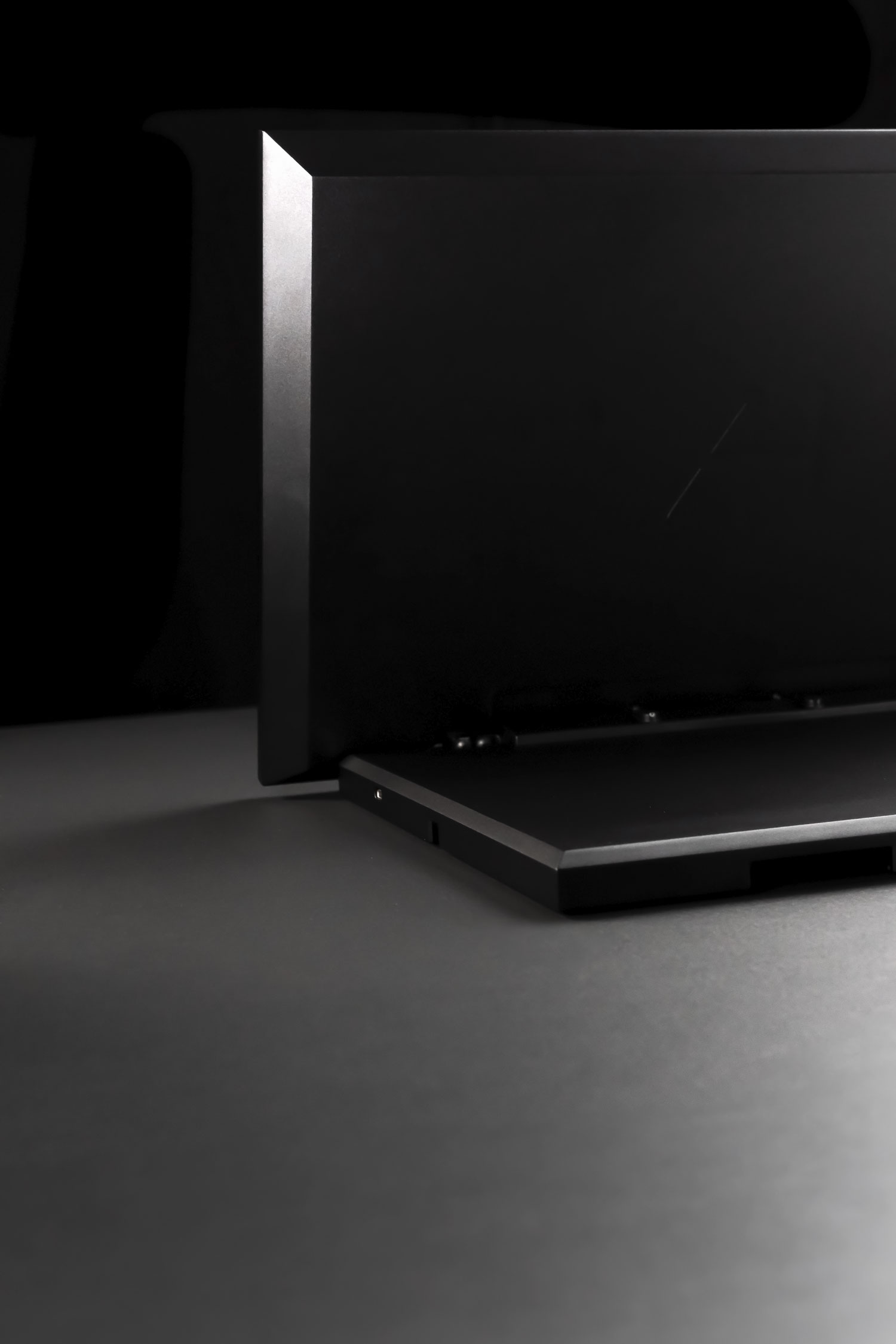

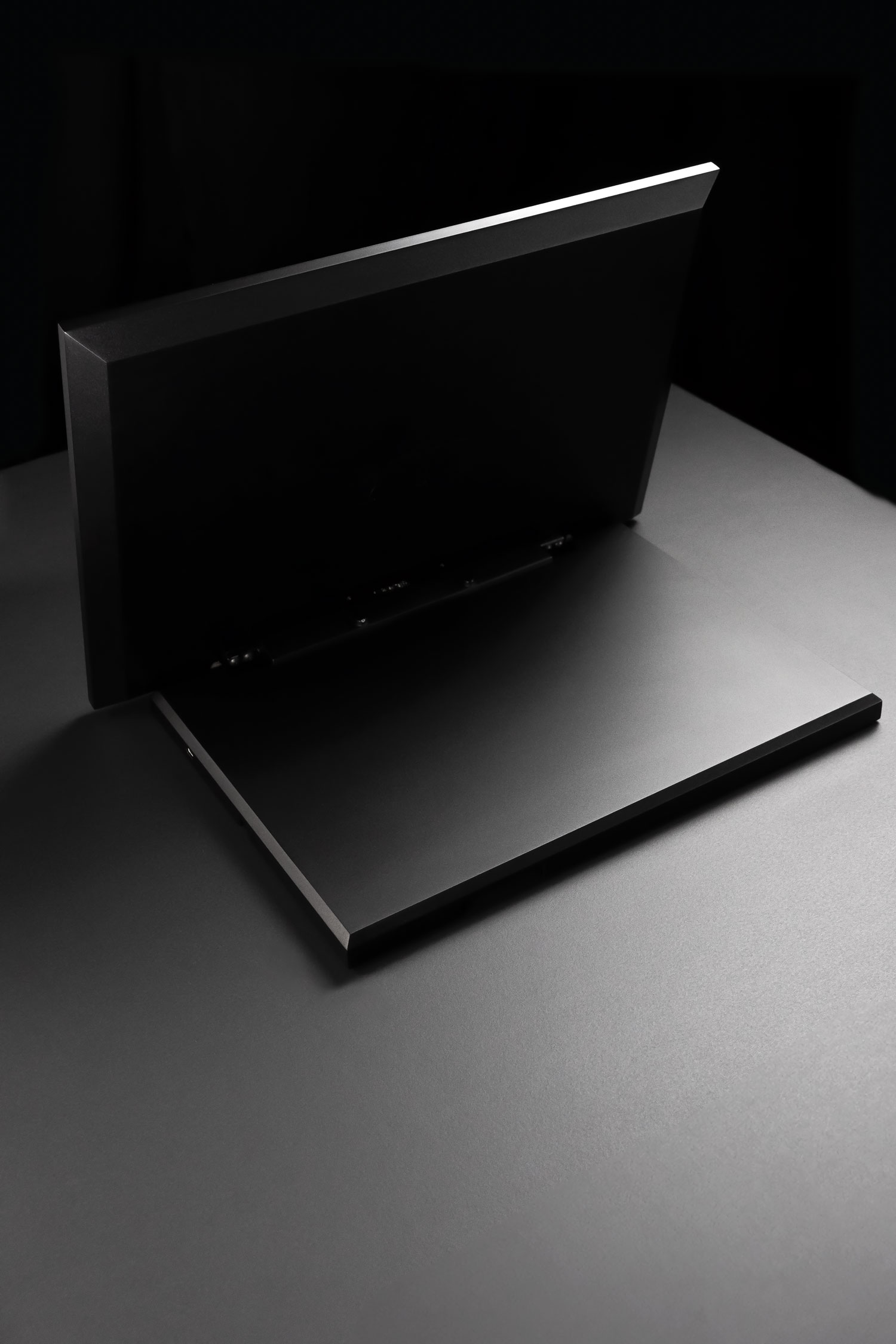

AH1 is a manually foldable aluminum monitor for desktops with anodized finish and a dark iron base. It includes an anti-glare protection glass with a stylish black frame. Tired of monitors that become too intrusive? AH1 desktop monitor is the ideal solution for auditoriums, tele presence, meeting and conference rooms and information counters. With a height that can be easily adjusted, they do not require structural changes on the table surface and can be optionally interactive. AH1 is available in 17” and 22″ sizes.
Positions

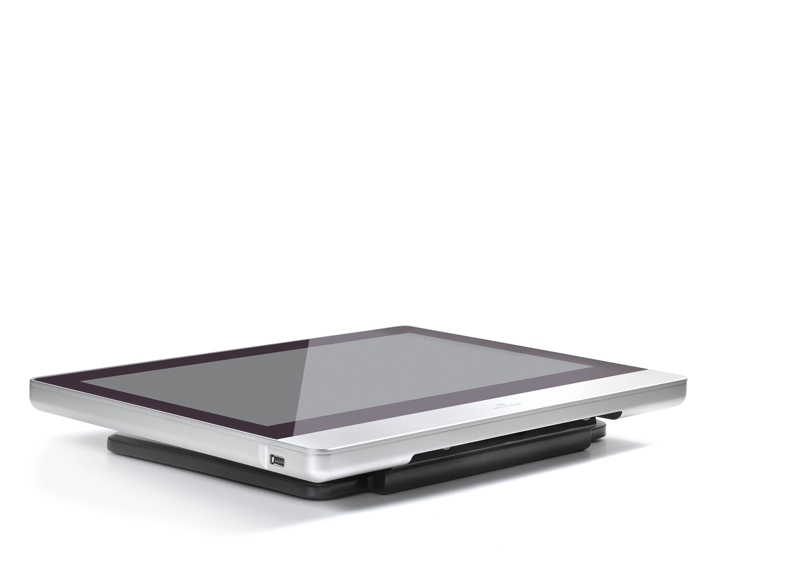

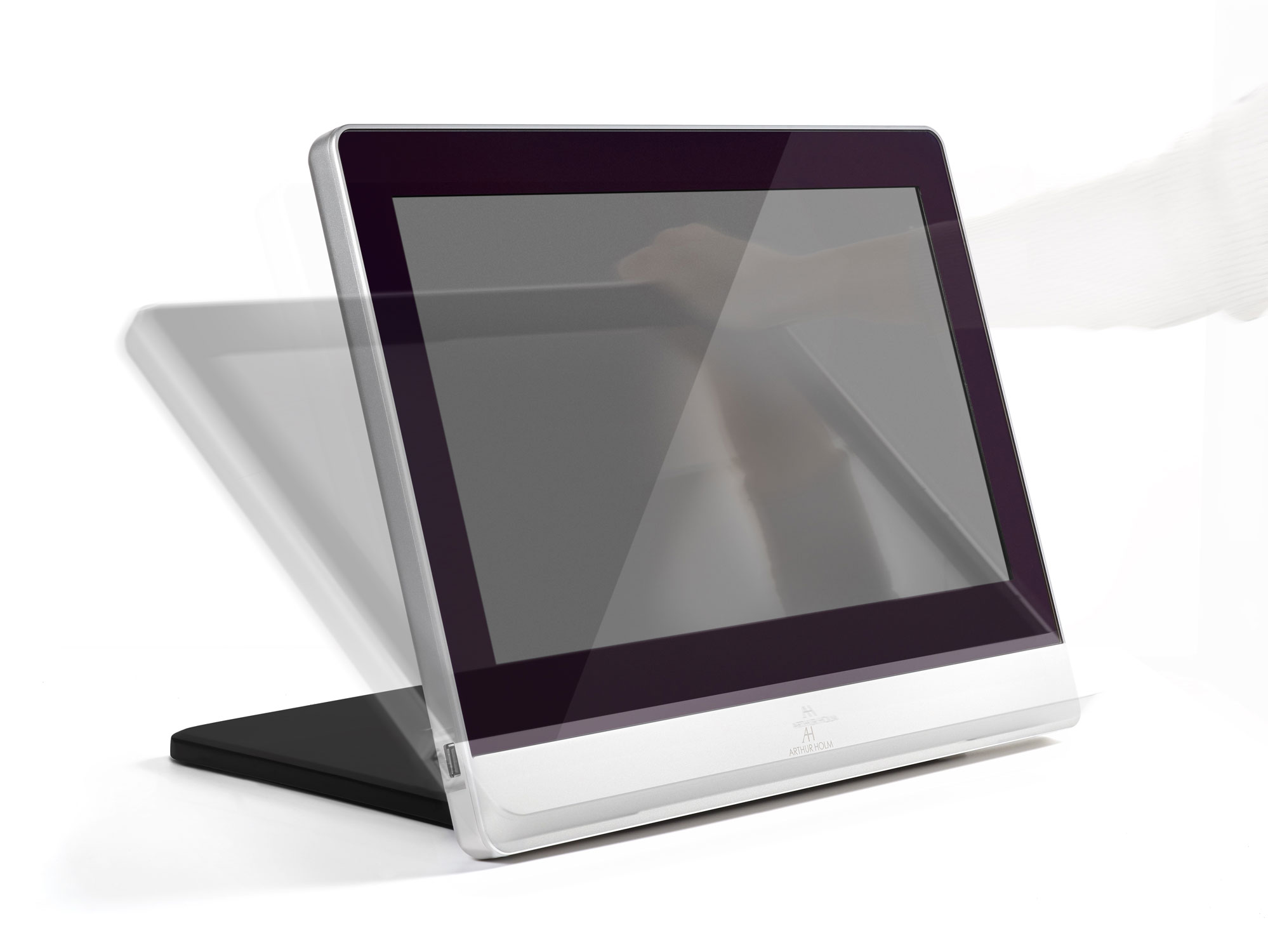

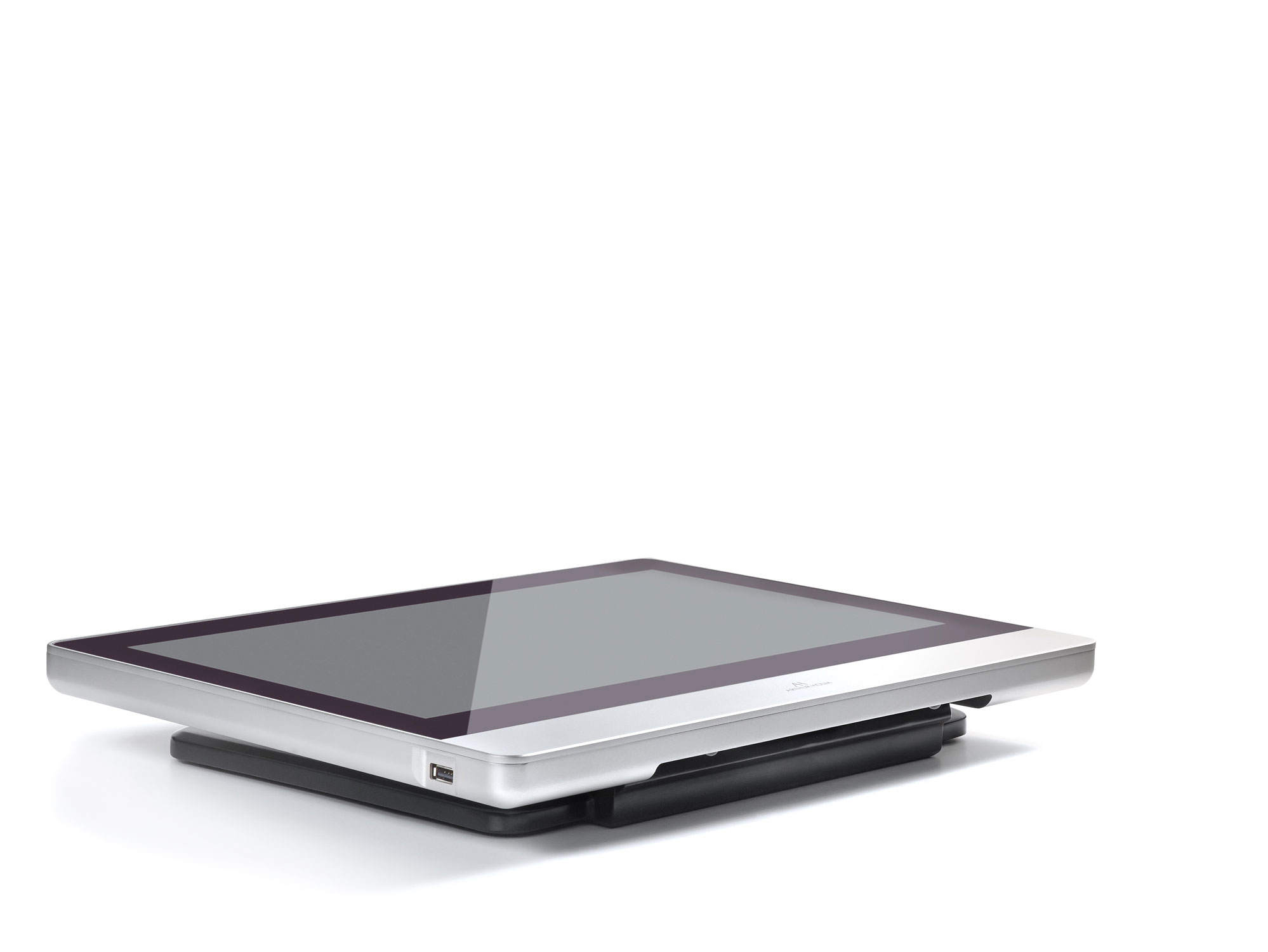

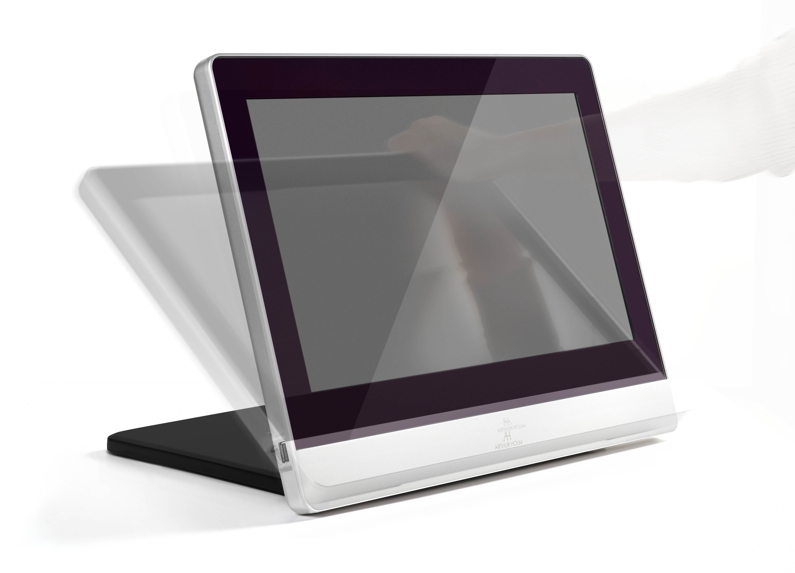

- Manually foldable from 70° to 0°
- 17,3”
- Full HD
- Totally adjustable position
- No need to modify desk surface
- Size
FULL HD 17.3” TFT Active Matrix,
widescreen
- Resolution
1920 (h) x 1080 (v)
- Contrast ratio
600:1
- Pixel
0.1989 (h) x 0.1989 (v) mm
- Viewing angle
60°/80° (u/d) / 80°/80° (l/r)
- Viewing area
381.888 (h) x 214.812 (v) mm
- LED backlight lifespan
50.000 hrs
- Response time
Tr 37 ms, Tf 3 ms
- Temperature
Operating 0ºC — +40ºC
Storage -20ºC — +60ºC
- Cabinet

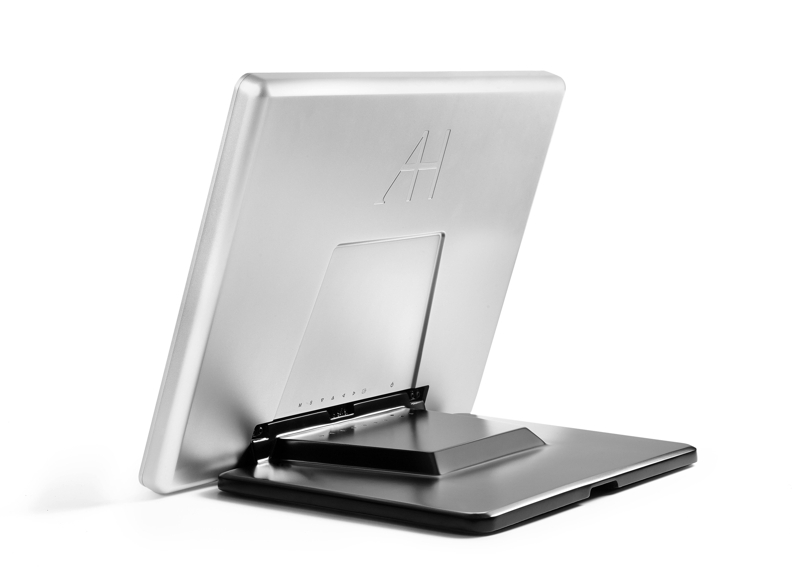

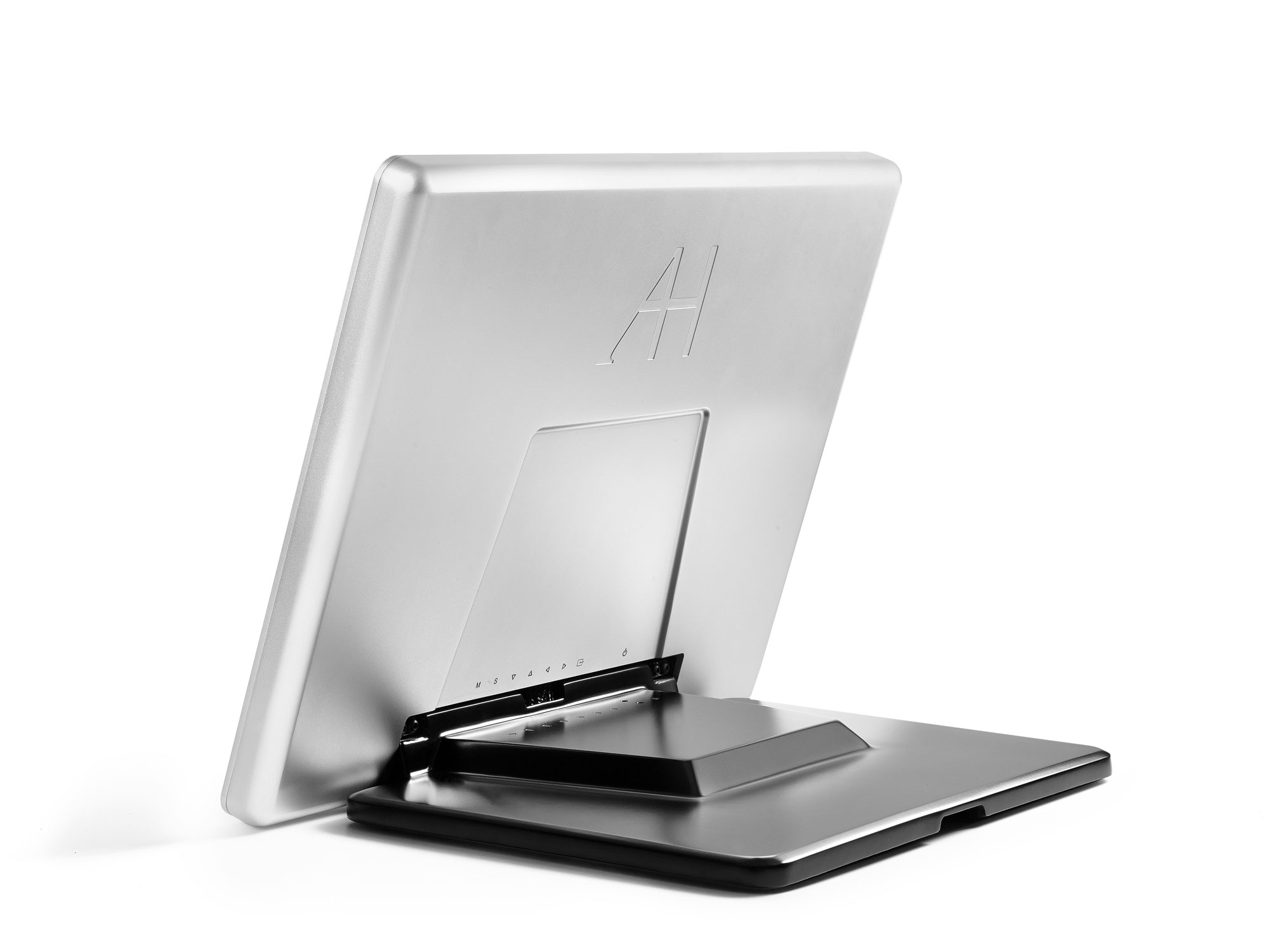

Milled aluminum housing with anodized finish and iron base. Front anti-reflective black-edged glass.
- Input signal
DVI-I (1 input) – HDCP Compliant
DVI-D (1 input) – HDCP Compliant
- Manually foldable from 70° to 0°
- 21,5”
- Full HD
- Totally adjustable position
- No need to modify desk surface
- Size
FULL HD 21.5” TFT Active Matrix,
widescreen
- Resolution
1920 (h) x 1080 (v)
- Brightness
250 cd/m2
- Contrast ratio
1000:1
- Pixel
0.247 (h) x 0.247 (v) mm
- Viewing angle
178° (v) / 178° (h)
- Viewing area
476.064 (h) x 267.786 (v) mm
- LED backlight lifespan
30.000 hrs
- Response time
Tg-g 25 ms
- Temperature
Operating 0ºC — +40ºC
Storage -20ºC — +60ºC
- Cabinet
Milled aluminum housing with anodized finish and iron base. Front anti-reflective black-edged glass.
- Input signal
DVI-I (1 input) – HDCP Compliant
DVI-D (1 input) – HDCP Compliant
