Connect and go

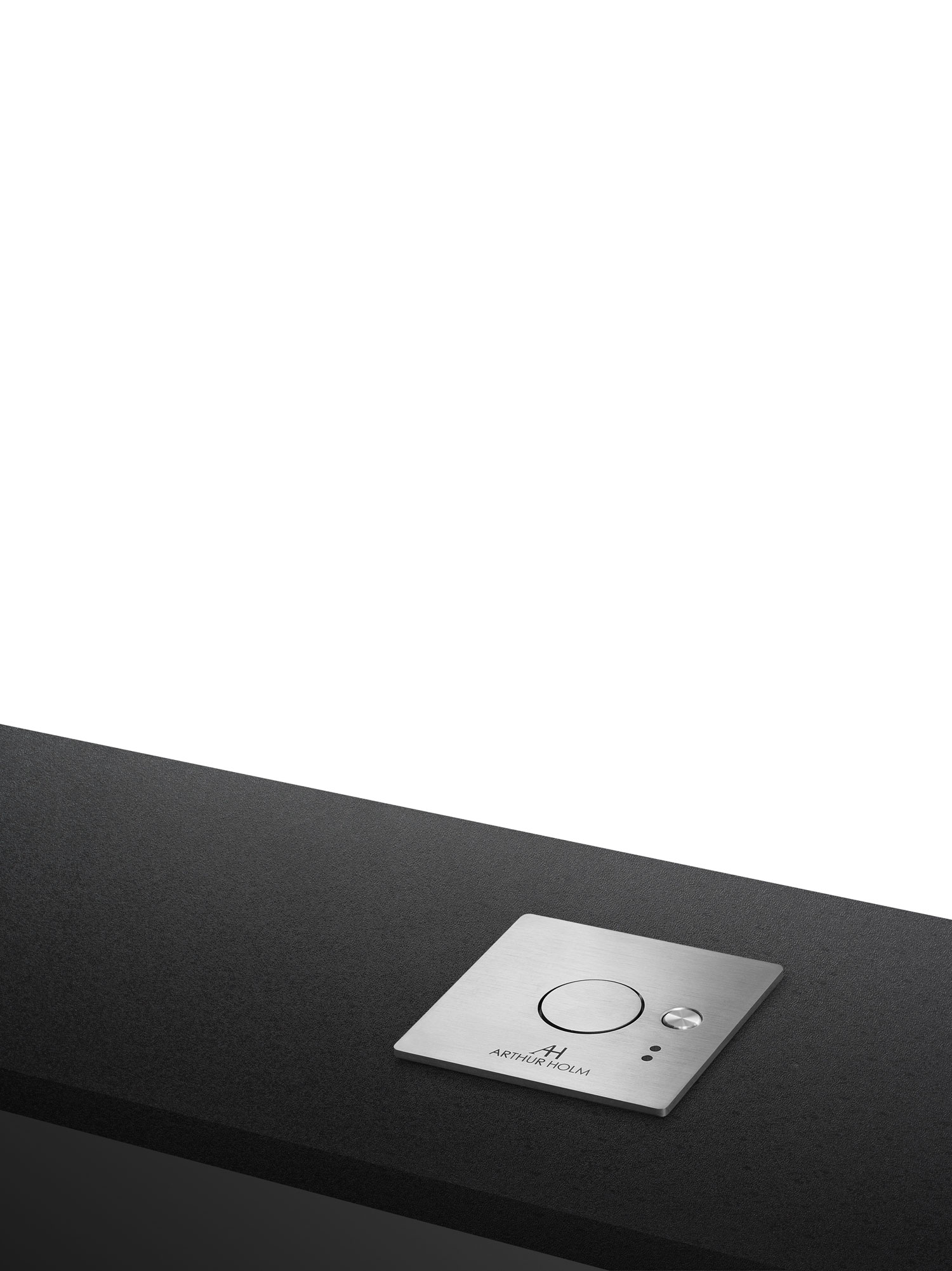

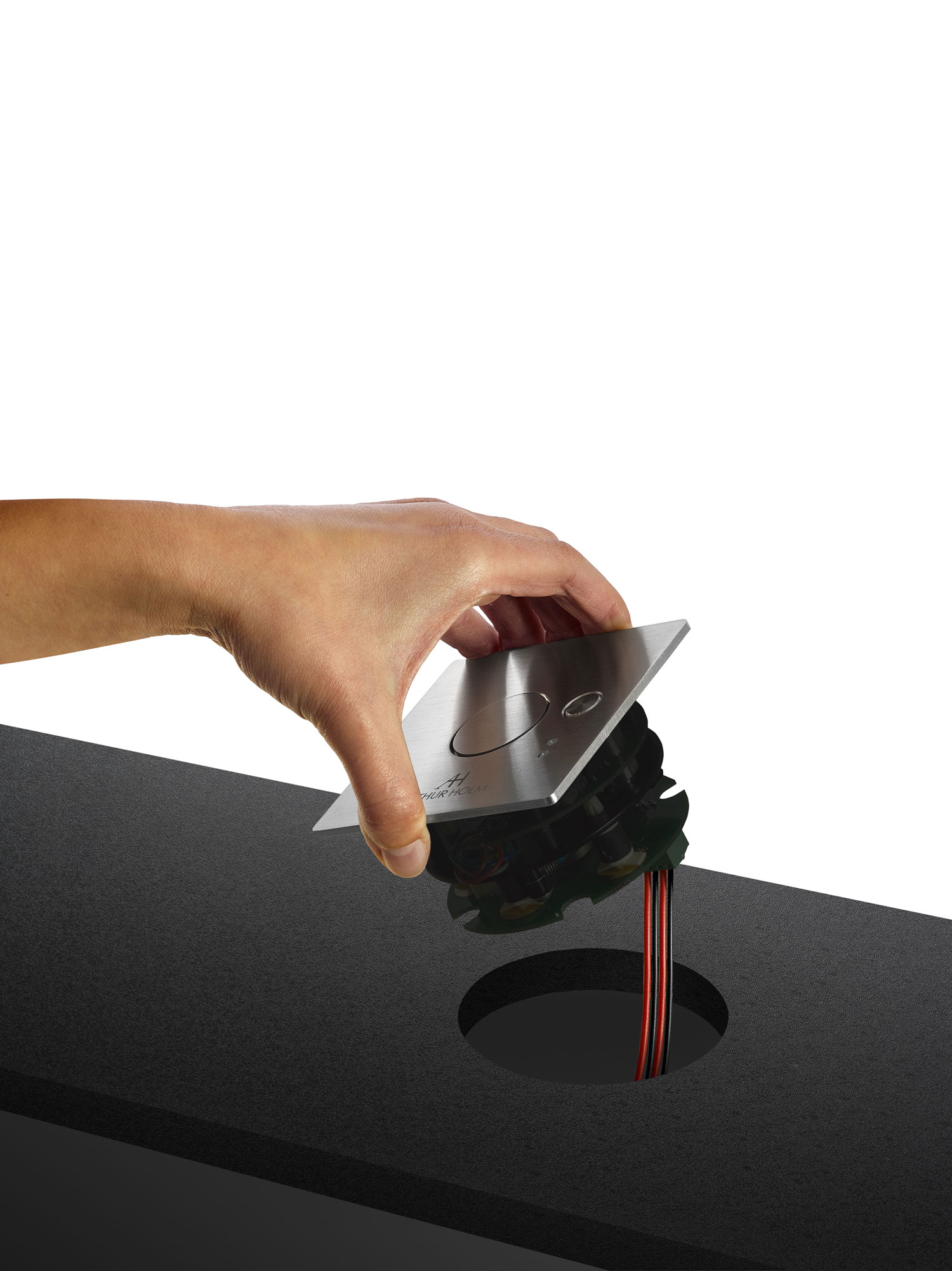

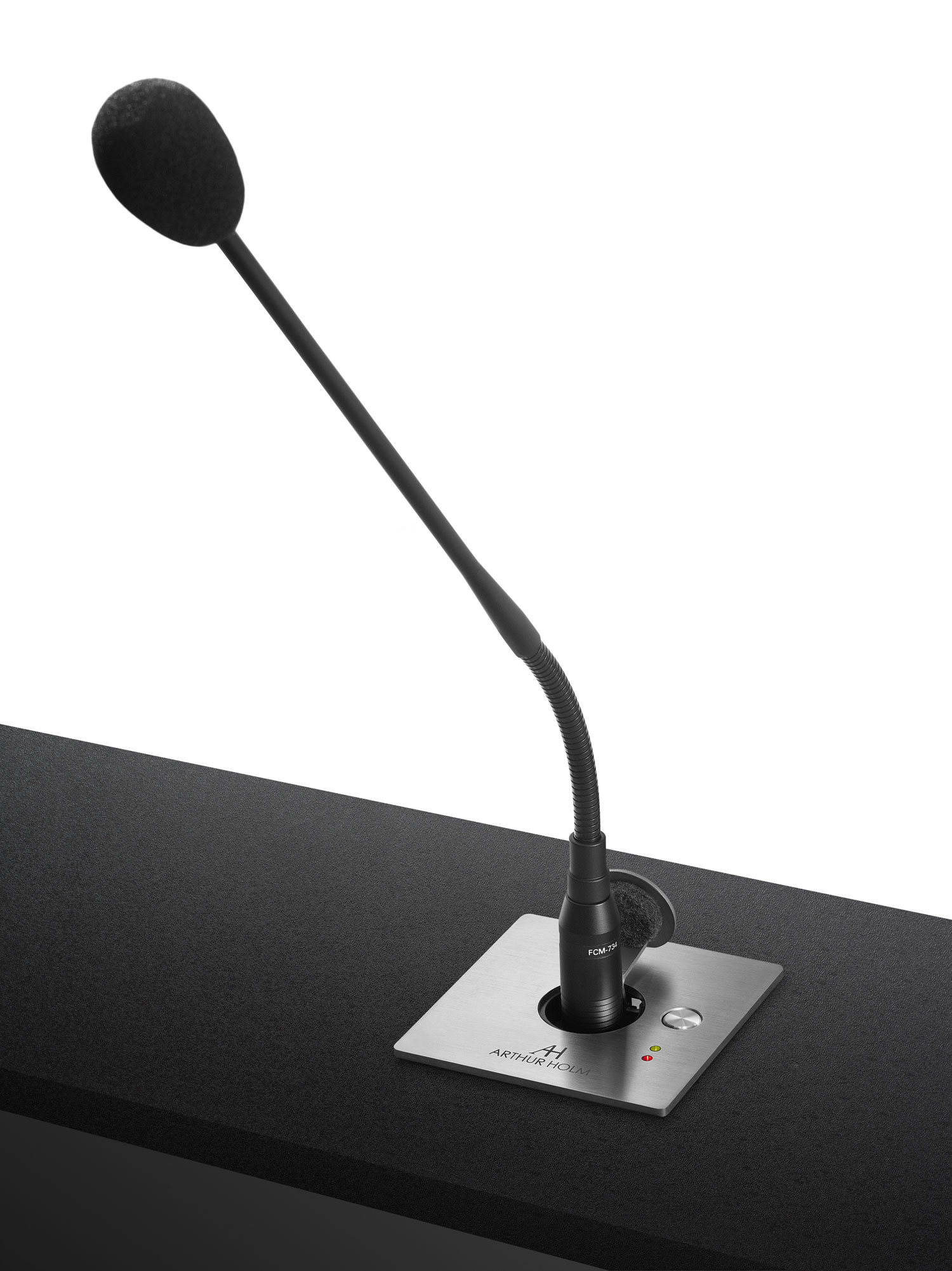

Arthur Holm’s MicConnect is a static surface mount for XLR microphones with integrated shock mount, push to talk button and microphone status LED. The microphone is very easy to connect and disconnect. A special tool (included with the product) is necessary to remove the microphone. When there is no microphone connected the XLR connector is covered by a lid integrated in the system. MicConnect is made of stainless steel and standard and customized finishes are available.
Positions
- XLR connector
- Integrated shock mount
- Push-to-talk button
- LED status indicator
- Cover plate
Stainless steel. Optional matte finish, or can be veneered to match the furniture
- Buttons
Push to talk button, push the button to lift the lid
- Activation
Microphone installed, push the button to activate/deactivate the system
- Main control
Main control depends on the audio unit
- LED’s
Green and red LED is activated from the main audio unit.
(5Vdc Voltage)
- Microphone Input
XLR3 pin standard microphone connector below the lid with integrated shock mount.
- Microphone Output
3 pin terminal block, located on the lower part of the MicConnect
- Controls
6 pin terminal block, located on the lower part of the MicConnect
Contact close push button
5Vdc Led power indicators
