Motorized Retractable Microphone – DynamicTalk
Microphone Solutions

Motorized Retractable Microphone – DynamicTalk

Talk and impress the audience

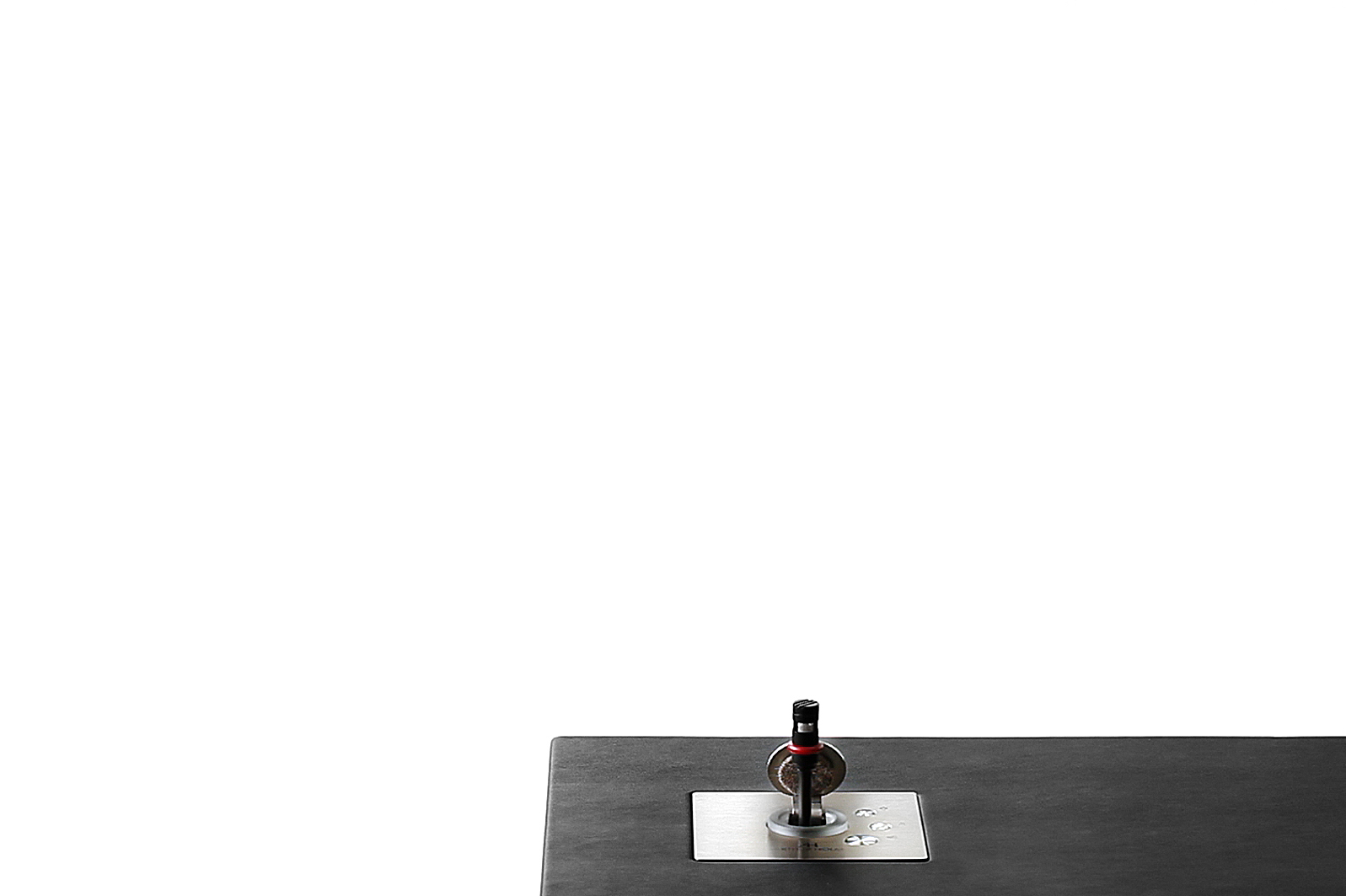

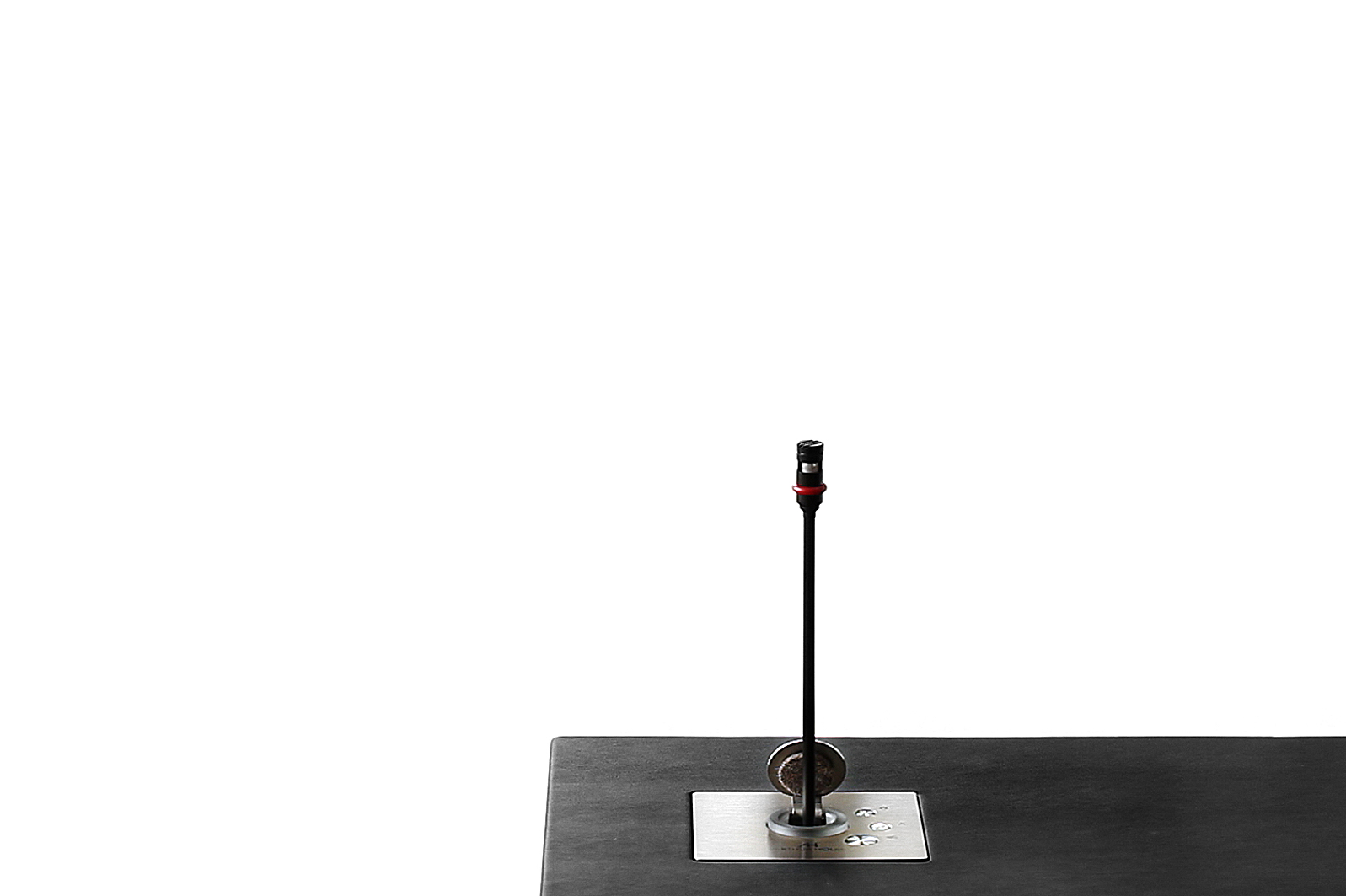

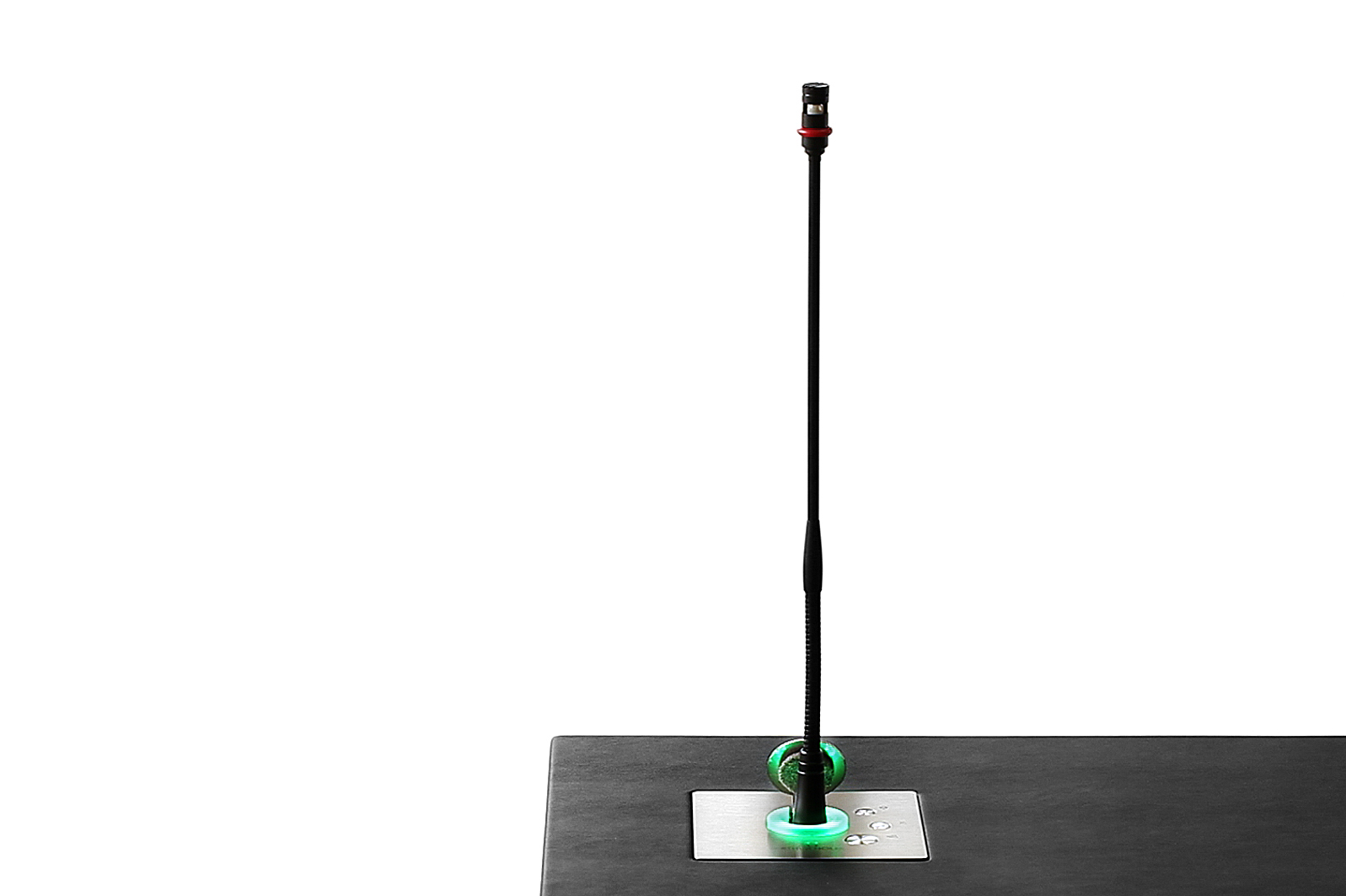

This unique system conceals the microphone elegantly within the desk surface (also providing an interior light to indicate status). Microphones are stored safely, improving flexibility of meeting and conference spaces, as tables can be used for different purposes. A LED light ring in the microphone base indicates a raised position. The cover plate is made of brushed stainless steel, but it can also be veneered to match the table surface perfectly.

DynamicTalk has 2 different working modes: PA and Conference. When in PA mode, the microphone can be activated and deactivated through a button placed on the cover plate. A LED light will show the status by changing from green to red. The system will silence the microphone when it is in a retracted position. When in Conference mode, the microphone will always be active and both the light ring and the access to the button on the cover plate will be available via a GPI/GPO connector. In this mode, the system can be connected and controlled through a conference system.

DynamicTalk lift system is available in 3 standard sizes: 400mm, 500mm, 600mm (for short, medium and large microphones with XLR connector). Customized versions are also available for all types and sizes of conference microphones with an optional integration of other interfaces on the cover plate.

microphone lift
system to hide microphones
microphone lift for meeting rooms
microphone lift for conference rooms
microphone protection system
lift for microphones in meeting and conference spaces
Lift system for gooseneck microphones

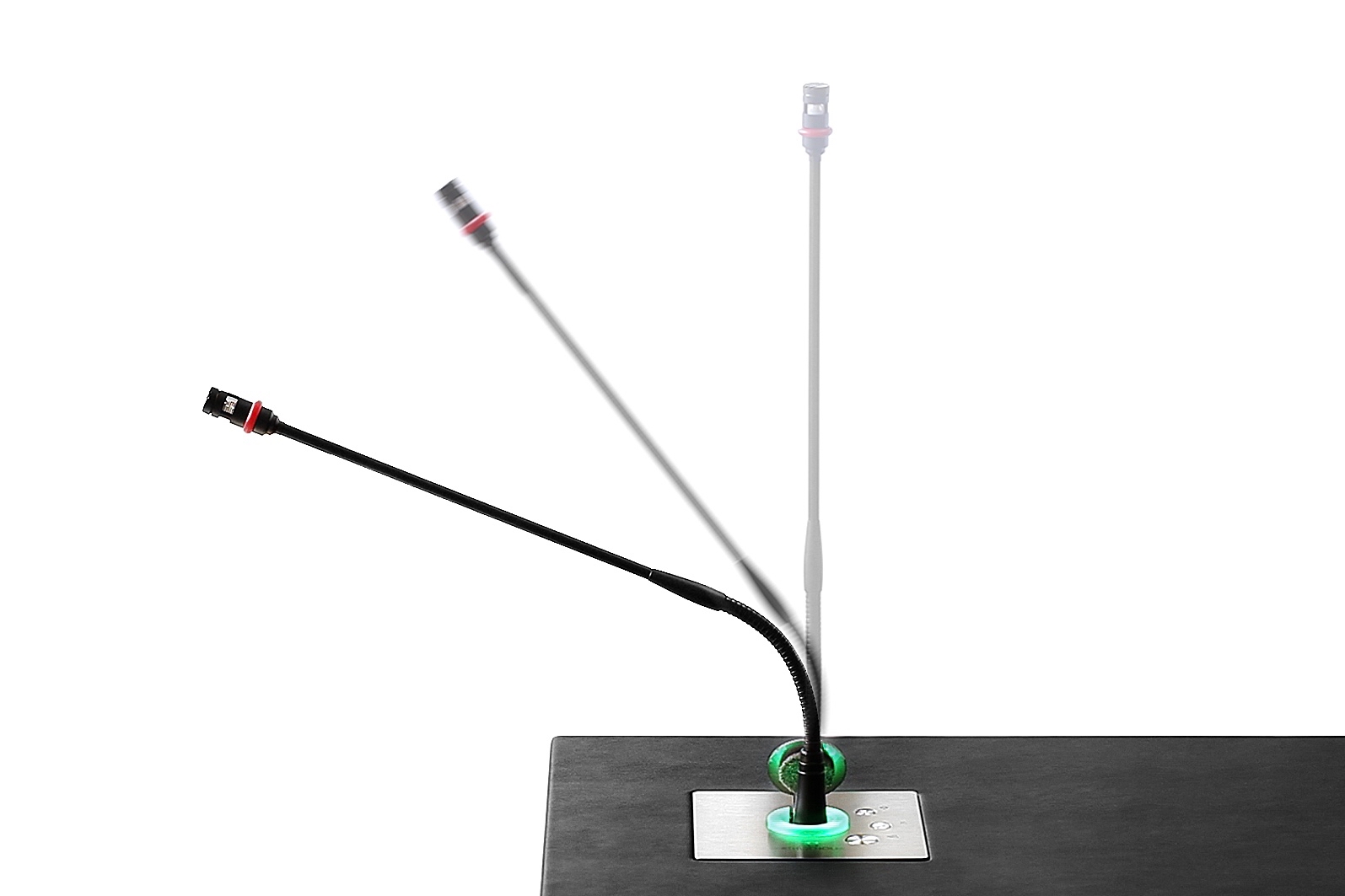

DynamicTalk is a universal motorized lift system for “gooseneck” microphones

Options

Positions

DynamicTalk range
AHDTLS
  • For gooseneck microphones
  • Max. 400 mm length
  • Vertical microphone storage
  • LED status indicator
  • Motorized lift
DynamicTalk Control
  • Up/Down Control
  • Button on upper cover plate
    GPI contact closer
    RS-422 (RJ45 CAT 5)

  • Microphone control
  • Button on upper cover plate

  • Customized function
  • Button on upper cover plate

  • GPI/O
  • LEDs, up/down and switch

Electrical
  • External power supplies
  • 100-240Vac, 50/60Hz, 12Vdc

  • DTalk consumption
  • 10W

AHDTLM
  • For gooseneck microphones
  • Max. 500 mm length
  • Vertical microphone storage
  • LED status indicator
  • Motorized lift
DynamicTalk Control
  • Up/Down Control
  • Button on upper cover plate
    GPI contact closer
    RS-422 (RJ45 CAT 5)

  • Microphone control
  • Button on upper cover plate

  • Customized function
  • Button on upper cover plate

  • GPI/O
  • LEDs, up/down and switch

Electrical
  • External power supplies
  • 100-240Vac, 50/60Hz, 12Vdc

  • DTalk consumption
  • 10W

AHDTLL
  • For gooseneck microphones
  • Max. 600 mm length
  • Vertical microphone storage
  • LED status indicator
  • Motorized lift
DynamicTalk Control
  • Up/Down Control
  • Button on upper cover plate
    GPI contact closer
    RS-422 (RJ45 CAT 5)

  • Microphone control
  • Button on upper cover plate

  • Customized function
  • Button on upper cover plate

  • GPI/O
  • LEDs, up/down and switch

Electrical
  • External power supplies
  • 100-240Vac, 50/60Hz, 12Vdc

  • DTalk consumption
  • 10W
